Hydra TFS1400 Flotation Separator

Water Density Separation Range

Hydra TFS1400 Flotation Separator

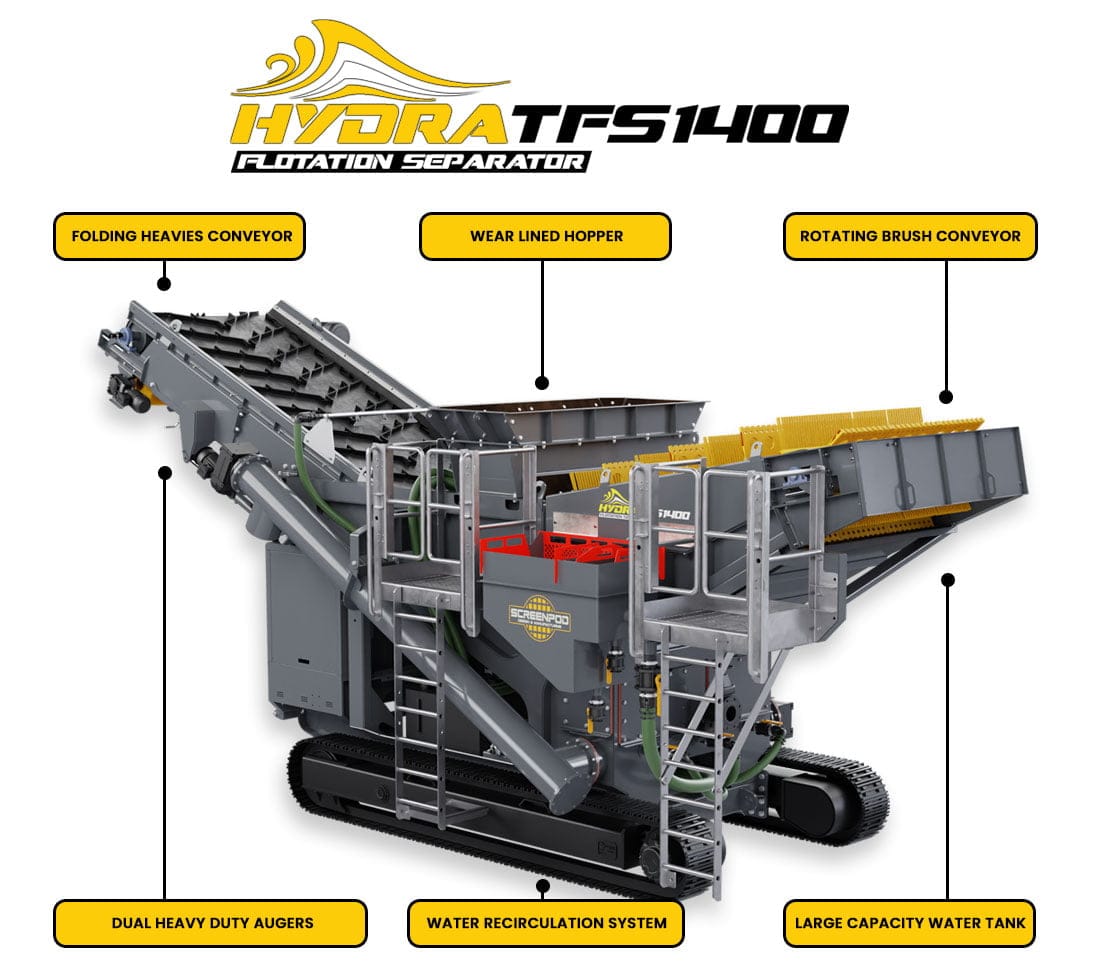

  • Large Capacity Water Tank for material separation
  • Can handle material ranging from 10mm to 150mm in size
  • Rotating brush/paddle conveyor for light material removal
  • Wide, folding conveyor to carry heavy material out
  • Dual heavy-duty augers for sediment and fines removal
  • Rotary brush for cleaning heavies’ conveyor
  • Water jets for improved material separation and preventing sediment build up
  • Side mounted sediment tank with removable filter elements for easy cleaning
  • Float valve on inlet water supply to keep tank topped up during operation
  • Wide hopper lined with wear plates
  • Electrical control panel with clear layout for straightforward operation
  • Walkways with ladders for service access
  • Removable doors on main tank for maintenance
  • Water hoses fitted with quick couplers for easy removal and maintenance
  • 40KVA generator
  • On board hydraulic power pack
  • Heavy duty tracks giving excellent mobility

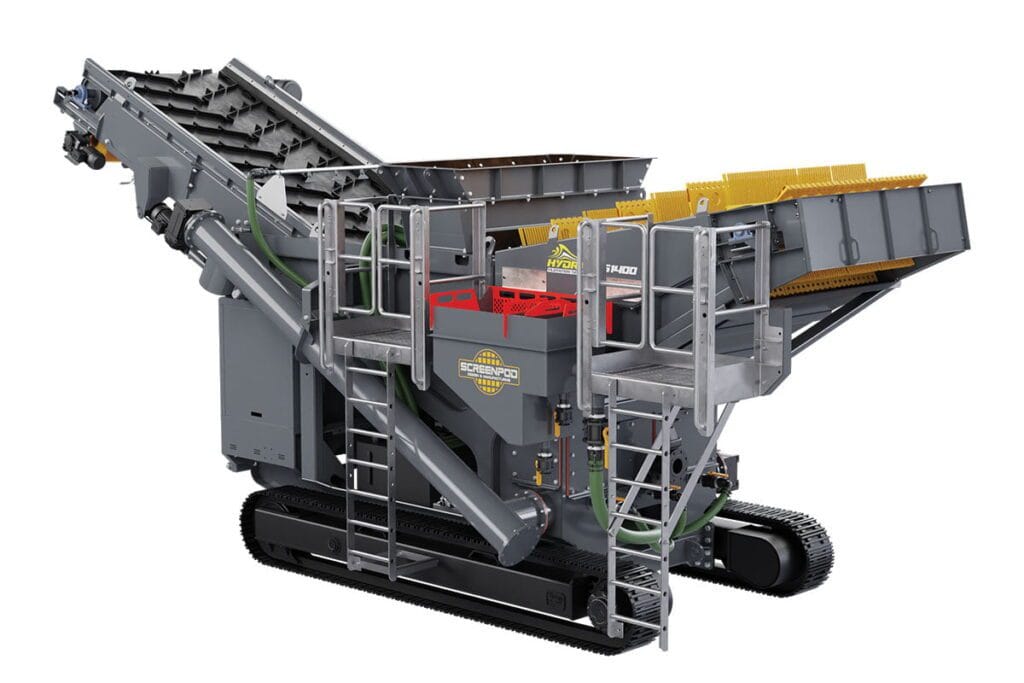

Hydra TFS1400 Flotation Separator

Presenting a truly unique yet incredibly effective solution to the separation of light and heavyweight materials from one another, the Screenpod Hydra line of water density separators provide exceptional performance and outstanding capability from a functionally intense package like no other, featuring a wide range of settings that ensure the machine can be tailored to suit a vast array of different applications, allowing processing of the toughest and most challenging material streams.



Available as either a tracked or static version, these machines offer high throughput with low operating costs, offering a significantly faster method of separation than manual sorting, as well as improved quality of materials produced and even providing the ability to extract materials that can be sold for recycling to create new revenue streams, all from a package that is fast & easy to set up with a clear and straightforward user interface for simple operation.

Benefits:



  • Outstanding separation of lights and heavies from material streams
  • Can reduce and ultimately replace need for manual sorting of various materials
  • Improves quality of processed materials produced
  • Significantly faster method of separation than manual sorting
  • Higher rates of recycling and larger volumes of extracted material
  • Can remove materials that can be sold for recycling to create new revenue streams
  • Reduce amount of waste destined for landfill, lowering disposal costs
  • Low dust emissions from water soaked output materials
  • High throughput and low operating costs
  • Variable settings to suit a wide range of applications

Applications:



  • Construction & Demolition Waste (C&D)
  • Commercial & Industrial Waste (C&I)
  • Household Waste Processing
  • Glass Recycling
  • Wood recycling
  • Metal Recycling
  • Aggregate Clean Up
  • Landfill Mining & Reclamation
  • Plastics Recycling
  • Trommel Fines Clean Up
